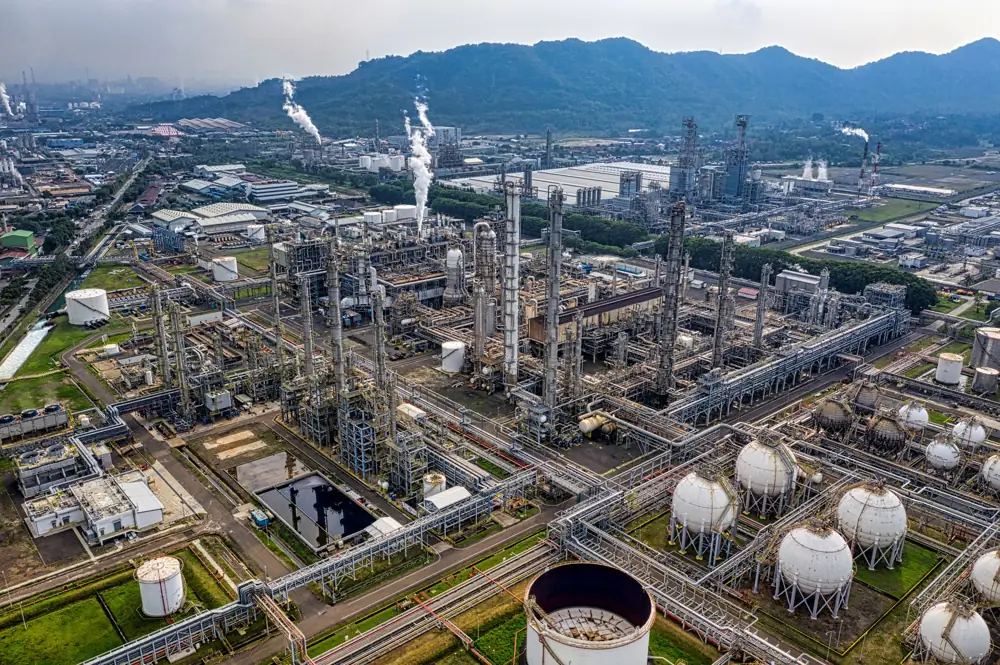

Instrumentation Fittings, Valves & Tubing for Petrochemical & Chemical Processing
Petrochemical and chemical processing instrumentation covers the family of fluid-system components engineered to carry, isolate and measure aggressive process media on measurement, sampling and control lines inside petrochemical and chemical plants: double-ferrule tube fittings, needle, ball, check and bleed valves, valve manifolds, regulators, instrument tubing and accessories. Crestflo supplies these parts across the full corrosion-resistant alloy ladder that chemical service demands, from 316/316L through Alloy 20, Hastelloy, Monel and titanium. NACE MR0175 / ISO 15156 compliance is available where specified. Tube fittings carry ASTM F1387-qualified drop-in interchange, and every part ships with heat-number traceability. We Engineer Confidence. Standard items sit in ready stock; specials are made to order, with delivery running 6–8 weeks.
On this page, the terms "ball valve," "needle valve," "manifold," "ferrule," and "compression fitting" refer to instrumentation-grade fluid-system components used for process measurement, sampling, and control. They don't mean plumbing valves, exhaust manifolds, or electrical wire ferrules.
Also Known As: CPI Fittings, Chemical Plant Tube Fittings & Petrochem Valves
Buyers ask for these components under a lot of different names. You'll see the category written as petrochemical instrumentation fittings, chemical processing fittings, valves and tubing, chemical plant tube fittings, chemical process industry (CPI) fittings, petrochem fittings and valves, and corrosion-resistant instrumentation valves. Then there are the alloy-led searches: Alloy 20 fittings, 904L tube fittings, Hastelloy C-276 tube fittings, Monel 400 fittings, sour-service (NACE) fittings. These describe the same sourcing decision, just viewed through the process media instead. Strip away the labels and it all comes down to one question: which product form, in which alloy, to which standard, for a given corrosive or sour service.
Why Chemical Service Is Different: Chloride SCC, Sour H₂S, Strong Acids & Caustic
In petrochemical and chemical plants, 316L stainless holds its own as a starting point, but the service environment frequently asks more of it than it can give. Five corrosion drivers decide alloy selection on instrument lines:
Chloride-bearing process streams and cooling water wetting austenitic stainless will crack it once temperatures climb even modestly. That pushes material selection toward duplex and 6-moly grades.
Sour service is its own animal. Hydrogen sulfide drives sulfide-stress cracking and hydrogen-induced cracking, so any wetted metal has to qualify under NACE MR0175 / ISO 15156.
Strong acids complicate things further. Sulfuric, hydrochloric, hydrofluoric and nitric each need their own corrosion-resistant alloy, there's no single grade that handles all four.
Hot caustic and chlor-alkali service bring on caustic stress-corrosion cracking in stainless. Nickel-rich alloys hold up better here.
High temperatures bring their own problems. Furnace, reformer and cracker service breaks down ordinary stainless through oxidation and carburization, which is why nickel-chromium and iron-nickel alloys tend to get the call instead.
These drivers rarely work alone. So the correct specification ties the dominant driver, along with temperature, pressure and concentration, to a defined alloy, product form and standard. That mapping is exactly what the selection table below covers, and it's laid out in full in our corrosion-by-media × alloy matrix and material selection by service guides.
Alloy Selection by Media: 316L, Alloy 20, 904L, Hastelloy, Monel, Duplex & Titanium
The table below lines up common petrochemical and chemical media against the corrosion-resistant alloys usually specified for wetted instrumentation components. It's a selection guide built on standard corrosion-engineering practice, not a service guarantee, so confirm the final grade against your process data sheet. Values follow the applicable standard and can be adjusted to requirement.
| Service / media | Corrosion driver | Recommended alloy(s) | Step-up trigger |
|---|---|---|---|
| General hydrocarbon / mild process | Mild | 316 / 316L | Baseline |
| Chloride-bearing / cooling-water-wetted | Chloride SCC & pitting | Duplex 2205, Super Duplex 2507, 254 SMO, AL-6XN | Chloride + temperature |
| Sour (H₂S) | SSC / HIC | 316L (limited), Inconel 825, Inconel 625, duplex per NACE | H₂S partial pressure → NACE MR0175 |
| Sulfuric acid | Acid corrosion | Alloy 20, 904L | Concentration / temperature |
| Hydrochloric acid / wet chlorine | Reducing-acid attack | Hastelloy C-276, C-22, B-2 / B-3 | Reducing acids |
| Hydrofluoric acid (HF alkylation) | Acid attack | Monel 400 / K500 | HF service |
| Caustic (NaOH, chlor-alkali) | Caustic SCC | Nickel 200/201, Monel 400 | Hot caustic |
| Oxidizing acids / oxidizing chlorides | Oxidation / pitting | Titanium Gr2, 254 SMO | Oxidizing + chloride |
| High-temp furnace / reformer | Oxidation / carburization | Inconel 600 / 601, Incoloy 800 / 800H, Hastelloy X | Elevated temperature |
316 and 316L work fine where the media is mild and dry. But once chloride content, H₂S partial pressure, acid concentration, caustic strength or metal temperature pushes past that grade's limit, it's time to step up. For head-to-head grade logic, see Alloy 20 vs 316, 904L vs 316 and Hastelloy vs Inconel. For sour service specifically, work through the sour-service (NACE MR0175) selection guide.
Products for Petrochemical & Chemical Service: Tube Fittings, Valves, Manifolds, Regulators & Tubing
Crestflo makes the full instrumentation lineup for chemical and petrochemical service, in stainless, high-nickel and titanium alloys, covering both imperial and metric sizes. The HTML-native specs below give buyers the data they usually have to dig through a downloadable catalog to find. Datasheets and CAD files are available to customers on request.
| Product form | Size range | Working pressure | Key end connections | Page |
|---|---|---|---|---|
| Double-ferrule compression tube fittings | To 2" (50 mm) OD | To 15,000 PSI | Tube, NPT, ISO/DIN | Tube fittings |
| High-pressure cone-and-thread fittings | Per bore | To 30,000 PSI | Cone-and-thread, NPT | Cone-and-thread |
| Face-seal (VCR / VCO) fittings | Analyzer / high-purity | Per series | Metal / O-ring face seal | Face-seal fittings |
| Needle, ball, check & bleed valves | 1/16"–1" | Per ASME B16.34 / series | NPT, BSP, tube-fitting | Instrumentation valves |
| 2 / 3 / 5-valve manifolds | DP / gauge hook-up | To 10,000 psi | Flanged, NPT, tube | 3-valve manifold |
| Double block & bleed (DBB) | Per line | To 3,000 psi | Flanged & screwed | DBB valve |
| Pressure & back-pressure regulators | Per series | Per series | Tube, NPT | Regulators |
| Instrument tubing (SS & alloy) | Per OD/wall | Per ASTM A269 / A213 | Seamless & welded | Tubing |
Values follow the applicable standard and can be tailored to what the job needs. The valve lineup covers needle, ball, check / NRV and bleed valves, along with 5-valve manifolds built for close-coupled transmitter hook-ups. For chemical gauge and impulse service, accessories include thermowells, condensate pots, syphons and snubbers. If the process is oxidizing or involves oxygen service, components can be oxygen / UHP cleaned.
Typical Applications & Instrument Hook-Ups in Petrochemical & Chemical Plants
The same lineup of products shows up throughout the plant, each one tailored to its particular service. Typical applications include:
- Chemical injection quills and injection lines: these dose inhibitor, antifoam and neutralizer into aggressive streams.
- Analyzer and sampling systems: grab-sample and continuous-analyzer loops built with face-seal and compression fittings. See analytical sampling systems.
- DP-transmitter close-coupled hook-ups: 3- and 5-valve manifolds that isolate and equalize differential-pressure transmitters.
- Gauge and transmitter hook-ups, impulse lines: root valves, needle valves, syphons and condensate pots fitted on pressure and level instruments.
- Steam tracing and instrument air: heat-traced impulse lines paired with clean instrument-air distribution. See steam tracing and instrument air.
You'll find these hook-ups across ethylene and olefins units, aromatics and BTX plants, chlor-alkali facilities, sulfuric and nitric acid plants, ammonia/urea and fertilizer trains, methanol and GTL operations, and specialty and fine-chemical processes. Each one traces back to the alloy logic laid out in the selection table above.
Standards & Compliance: NACE MR0175, ASME B16.34, ASME B31.3, ASTM A269 & F1387
Crestflo instrumentation components carry the standard approvals that apply to each product type. Tube fittings are qualified for performance against ASTM F1387. Where a project calls for it, they're supplied NACE MR0175 / ISO 15156 compliant for sour service. Valves are a different matter: they qualify to ASME B16.34 and whichever API valve standards apply. All standards referenced are current published editions. Values follow the applicable standard, and can be adjusted to a customer's requirement.
| Standard | What it governs | Applies to |
|---|---|---|
| NACE MR0175 / ISO 15156 | Sour-service (H₂S) materials | Fittings, valves, tubing |
| NACE MR0103 | Refinery / chemical sour service | Fittings, valves |
| ASME B16.34 | Valve pressure-temperature ratings | Valves, DBB |
| ASME B31.3 | Process piping (instrument context) | Tubing, hook-ups |
| ASME B1.20.1 | NPT pipe threads | End connections |
| ASTM A269 / A213 | Seamless & welded tubing | Instrument tubing |
| ASTM A479 / A182 | Bar & forgings | Fitting / valve bodies |
| ASTM F1387 | Compression-fitting performance | Tube fittings (interchange) |
| EN 10204 MTC | Material test certification | All parts |
Why Crestflo for Petrochemical & Chemical Instrumentation
Crestflo is the instrumentation division of an export house that's been in business for four decades and carries Government of India recognition. It has a proven track record delivering into the Middle East. That same manufacturing discipline now backs a dedicated instrumentation line built for US buyers. For petrochemical and chemical buyers, here's what that means:
- Drop-in interchange, proven. Tube fittings match Swagelok, Parker, Hoke, Hy-Lok and Fitok patterns dimensionally, and that's backed by ASTM F1387 performance qualification. Skip the static part-number chart. Request your cross-reference instead, and our engineering team will map your existing part numbers.
- The full alloy ladder. 316/316L through 904L, Alloy 20, duplex and 6-moly, Monel, Hastelloy, Inconel/Incoloy, Nickel 200/201 and Titanium Gr2. These are the exotic grades chemical service actually needs.
- 6–8 week delivery. We keep ready stock for standard items and build specials to order. Compare that to the 20-plus weeks common from the majors.
- Both imperial and metric, small MOQ, and OEM private-label / made-to-print.
- Cost-competitive after US duties and tariffs.
Quality, Traceability & Origin Transparency
Every Crestflo part carries a heat/lot number, so you always know where it's been. EN 10204 MTC 3.1 comes standard, and 3.2 ships if you ask for it. The company holds ISO 9001 / 14001 / 45001 and PED certification, with certificates kept on file and available through our quality and traceability resources. Testing covers a lot of ground: hydraulic proof, burst and impulse, pneumatic, fatigue, vibration, thermal cycling, pull-out and vacuum, positive material identification (PMI), and 100% seat and shell leak testing on manifolds. In-house NDT gets backed up by destructive testing at ISO/IEC 17025-accredited laboratories, and third-party inspection is available on request.
Standard product runs Indian origin. US or European melt is available on request, and we provide full material traceability wherever domestic-melt or TAA-aligned procurement is needed. See US-origin & compliance to see how Crestflo handles this honestly on each order.
Petrochemical & Chemical Corridors We Serve Across the US
Crestflo supplies instrumentation fittings, valves and tubing to petrochemical and chemical operators across the US Gulf Coast and beyond. Everything's made to order, with delivery running 6–8 weeks. Regional pages cover Houston, TX, Baton Rouge, LA, Lake Charles, LA, Corpus Christi, TX, New Orleans, LA, Beaumont, TX, Chicago, IL, Philadelphia, PA, Newark, NJ, Pittsburgh, PA and San Antonio, TX.
Request a Quote
Send your line list, print or requirement to sales@crestflousa.com, or call +1 346 594 9005 in Houston, TX. Include your name, company, email, phone number and a brief description of what you need, and our engineering team will get back to you with a quote, a sample, or your part-number cross-reference. Distributor and OEM private-label programs are available through Crestflo.
FAQ
What tube-fitting alloys do you supply for chemical service?
The range covers 316 and 316L, along with 904L, Duplex 2205, and Super Duplex 2507. Round that out with 254 SMO, AL-6XN, and Alloy 20. Nickel-based options include Inconel 625 and 825, Incoloy 800 and 800H, and Monel 400 and K500. Hastelloy C-276, C-22, B-2, and B-3 are all available too, as are Nickel 200 and 201 and Titanium Gr2. Every size comes in both imperial and metric, and each piece ships with heat-number traceability.
Which alloy should I specify for sulfuric acid service?
For sulfuric acid service, Alloy 20 and 904L are the alloys you'll reach for most often; which one fits depends on acid concentration and temperature. Check the numbers against your service data. The media-to-alloy table above covers this too, and for a closer look at how the two grades stack up, see Crestflo's comparison of Alloy 20 vs 316.
What do you recommend for HF (hydrofluoric acid) alkylation service?
Monel 400 or K500 is the go-to choice for hydrofluoric acid in HF alkylation units. Before locking in the specification, confirm it against your specific service conditions.
Which alloy handles hydrochloric acid or wet chlorine?
Hydrochloric acid and wet chlorine are reducing acids. Standard austenitic stainless can't handle them well. For that kind of service, engineers typically reach for Hastelloy C-276, C-22, or one of the B-series alloys, since these materials resist reducing-acid attack far better than austenitic stainless does.
Are your fittings and valves NACE-compliant for sour (H₂S) service?
Wetted components meet NACE MR0175 / ISO 15156, and NACE MR0103 for refinery and chemical service, wherever the specification requires it. Valves are qualified to ASME B16.34 and the relevant API standards.
Do you provide material traceability and test certificates?
Every part gets a heat/lot number, no exceptions. We supply EN 10204 MTC 3.1 as standard, with 3.2 available on request. Positive material identification (PMI) can also be arranged for verification.
Are your fittings a drop-in replacement for Swagelok or Parker?
Tube fittings do offer dimensional interchange, backed by ASTM F1387 performance qualification. Rather than publish a static chart, we invite you to request your Swagelok or Parker cross-reference, and our team will map your part numbers for you. This is interchange and equivalent positioning only. Crestflo isn't affiliated with those brands, which remain trademarks of their respective owners.
What sizes and pressures do you cover?
Tube fittings run up to 2" (50 mm) OD, and valves cover 1/16"–1". Compression fittings handle up to 15,000 PSI, while cone-and-thread pushes as high as 30,000 PSI. Manifolds top out at 10,000 psi, and DBB units are rated to 3,000 psi. Everything comes in both imperial and metric, with values set per the applicable standard, and can be customized to whatever the job requires.
What is your lead time?
Standard items ship from ready stock. Specials are made to order, with delivery running 6 to 8 weeks. That's a sharp contrast to the major manufacturers, where 20-plus weeks is standard.
Where are the products made, and are they TAA-compliant?
Standard product comes from India. US and European melt is available on request, with full material traceability, which is how Crestflo handles domestic-melt or TAA-aligned procurement when it's required. Full details sit on our US-origin & compliance page.
Do you offer small MOQ, samples, and private label?
Small minimum order quantities? Yes, we support those. Sample requests are fine too, and we handle OEM private-label and made-to-print manufacturing as well.
