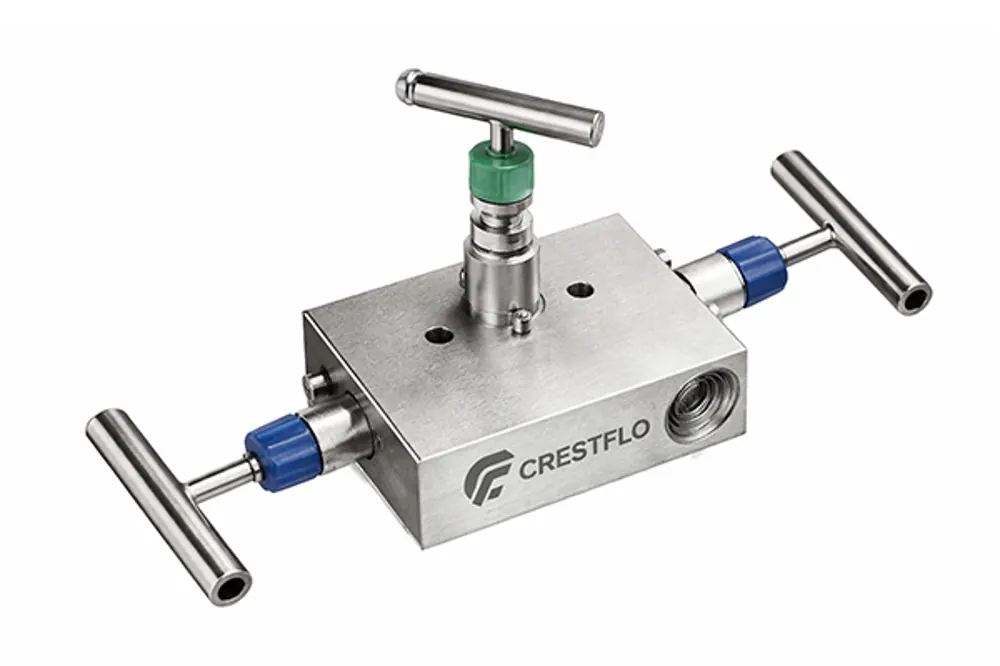

3-Valve Manifolds for DP Transmitters

A 3-valve manifold is an instrument valve manifold that combines two isolation (block) valves and one equalizing valve in a single body, letting an operator isolate, equalize and zero a differential-pressure transmitter without breaking the impulse lines. Crestflo manufactures three-valve manifolds in 316/316L stainless and a full range of duplex and high-nickel alloys, direct-mount or remote-mount, rated up to 10,000 psi with 100% seat and shell leak testing on every unit, a heat/lot number marked on the body, and EN 10204 MTC 3.1 certification as standard. Every manifold is offered on a ready-stock-for-standard-items or made-to-order basis, delivered in 6–8 weeks.

To keep the scope clear: on this page, manifold means an instrument valve manifold for differential-pressure measurement, not an exhaust manifold, a PEX or plumbing manifold, or a lawn-sprinkler/irrigation manifold, and not the unrelated "3-manifold" of topology.

This product is also specified as a three-valve manifold or three valve manifold, a 3 valve manifold, a 3-way instrument manifold, where "3-way" denotes its three valves, not a multi-port 3-way ball valve, a DP manifold, a DP valve manifold, a differential pressure manifold, a differential-pressure transmitter manifold, a pressure-transmitter manifold, an equalizing valve manifold, and a two-isolate-one-equalize or block-and-equalize manifold. Specifiers commonly call out the mounting (direct-mount, remote-mount or panel-mount manifold, pipe-to-flange, flange-to-pipe or flange-to-flange), the body style (H-pattern or T-pattern, coplanar or traditional flange), and the transmitter flange pattern (IEC 61518, the 2.125-inch / 54 mm bolt spacing) when placing an order.

What Is a 3-Valve Manifold?

A 3-valve manifold is the valve block that sits between a differential-pressure (DP) transmitter and its high- and low-pressure impulse lines. It carries three valves: two isolation valves, one on the high-pressure leg, one on the low-pressure leg, that shut the transmitter off from the process, and one equalizing valve that connects the two legs so the pressure across the DP cell can be nulled. Integrating those three functions into one forged or bar-stock body removes the leak paths, fittings and bulk of a valve-by-valve hook-up, and gives a compact, traceable assembly for flow, level, pressure and density measurement. Because it is an assembly rather than a single grade of steel, alloy designations belong to the material of its body and trim, not to the manifold as a whole.

How a 3-Valve Manifold Works: Isolate, Equalize & Zero

In normal service the two isolation valves are open and the equalizing valve is closed, so the transmitter reads the true differential across the process. To zero or remove the transmitter, the sequence protects the DP cell from over-range: close both isolation valves, then open the equalizing valve so both sides of the cell see the same pressure and the differential falls to zero. The transmitter can then be zeroed, calibrated or isolated for removal. Reversing the sequence, close the equalize valve, then open the isolates, returns the loop to service. Opening the equalize valve before closing an isolate would slam full line pressure onto one side of the cell, which is why the order matters. Crestflo manifolds use a non-rotating stem tip so the tip seals against the seat without spinning, protecting seat finish and keeping the shut-off repeatable over many cycles. A 3-valve manifold blocks and equalizes but has no dedicated bleed; where the procedure calls for a positive vent between two blocks, a block and bleed manifold, use a 5-valve manifold or a double block-and-bleed valve instead. The full step-by-step procedure, a labeled 3 valve manifold diagram, and the reasoning behind 2-, 3- and 5-valve designs are covered in the 2-valve vs 3-valve vs 5-valve manifold guide.

3-Valve Manifolds for DP, Flow, Level & Pressure Transmitters

The three-valve manifold is the standard hook-up for differential-pressure transmitters measuring flow across an orifice or venturi (a flow transmitter manifold), liquid level by hydrostatic head (a level transmitter manifold), and gauge or differential pressure. It bolts to transmitters built to the IEC 61518 flange pattern, the 2.125-inch (54 mm) bolt spacing common to DP transmitter families such as the Rosemount 3051 and the Yokogawa EJA/EJX, so it fits directly to the process flange of most flow and level cells. Those model names are cited only as generic fitment references: Rosemount is a trademark of Emerson and EJA/EJX of Yokogawa, and Crestflo is not affiliated with or endorsed by either. Specify the transmitter model, flange pattern and preferred mounting on the RFQ and the manifold is supplied to suit; pattern and bolt dimensions follow the applicable standard and are customizable to requirement.

Direct-Mount vs Remote-Mount 3-Valve Manifolds

The two mounting classes differ in how the manifold ties the transmitter to the impulse lines.

Coplanar bodies present both process ports on one plane for a lower, more compact stack; traditional bodies keep the process connections in line with the transmitter. Remote-mount units are frequently carried on a 2-inch pipe-stand mounting or bolted into panel-mount and manifold-rail assemblies where the transmitter is grouped away from the tap. Choose direct-mount for the tightest, lowest-leak hook-up and remote-mount where the transmitter must sit clear of the process tap.

3-Valve Manifold Connections, Threads & Port Sizes

Process and instrument connections are offered as NPT threaded ends to ASME B1.20.1, flanged, socket-weld, butt-weld or tube-fitting/compression ends, in imperial or metric. Instrument-side and process-side ports are commonly 1/4-inch to 1/2-inch on standard DP manifolds, extending to 3/4" ports on larger builds, with the equalize valve linking the two isolate legs and an optional vent/bleed port. Thread, flange and OD dimensions follow the applicable standard and are customizable to requirement. Cv, bore and weight are model-specific and supplied on request with the datasheet.

Tube-end manifolds accept hardened or non-hardened ferrules to requirement. For a drop-in replacement on an existing installation, request your Swagelok®, Parker® or Anderson Greenwood® cross-reference and specify the size, mounting and material.

3-Valve Manifold Pressure Rating, Temperature Limits & Testing

Crestflo instrument manifolds are rated up to 10,000 psi cold working pressure, a 6,000 psi manifold build covers most standard DP service, with the 10,000 psi rating reserved for high-pressure duty, and the certified rating for a given model is set by body style, material and temperature; pressure–temperature basis follows ASME B16.34 and is customizable to requirement. Maximum service temperature is governed by the packing and seal material rather than the body alloy, the values below are the commonly published continuous-service limits for each seal, and Crestflo supplies the packing matched to your service.

Every manifold undergoes a 100% seat and shell leak test. The wider regime includes hydraulic proof, burst and impulse testing, pneumatic testing, thermal cycling and vibration, with positive material identification (PMI) to confirm alloy. Non-destructive testing is performed in-house; destructive testing is outsourced to ISO/IEC 17025-accredited laboratories, with third-party inspection available on request. A heat/lot number is marked on every body and an EN 10204 MTC 3.1 certificate ships as standard, with 3.2 available on request.

3-Valve Manifold Materials: 316 Stainless, Duplex 2205, 6Mo & High-Nickel Alloy

Manifold bodies and trim are machined from bar stock or forged in stainless, duplex, super-austenitic (6Mo) and nickel alloys, no brass. Each grade below links to its material page; the manifold is offered in instrumentation form only, not as bar, plate or mill product.

Sour-service material options are supplied to NACE MR0175 / ISO 15156. Finishes include material finish, electropolish, passivation and silver anti-galling plating, customizable to requirement. Browse all instrumentation manifold materials.

2-Valve vs 3-Valve vs 5-Valve Manifold: Which to Choose

A 3-valve manifold isolates and equalizes; a 5-valve adds two vent/bleed valves for safer venting and calibration; a 2-valve serves single-line gauge and pressure duty. The full decision logic is in the 2-valve vs 3-valve vs 5-valve manifold guide, and the trade-off against a single-block design in monoflange vs manifold.

Standards, Certifications & Traceability

Crestflo is ISO 9001, ISO 14001, ISO 45001 and PED certified. Three-valve manifolds conform to the standard approvals applicable to instrumentation valves: ASME B16.34 for design and pressure–temperature basis and the applicable API testing standards (API 598 / API 602) for shell and seat testing, ASME B1.20.1 for NPT threads, and NACE MR0175 / ISO 15156 for sour-service material options. Every manifold carries a heat/lot number marked on the body and ships with an EN 10204 MTC 3.1 certificate as standard; MTC 3.2 with third-party endorsement is available on request. Certificates are held in our quality system; content pages state conformance rather than certificate numbers. Datasheets and CAD models are available to customers on request.

Replacing Swagelok, Parker & Anderson Greenwood 3-Valve Manifolds

Crestflo manifolds are engineered for dimensional interchange with the common instrument-manifold brands, qualified by test to ASME B16.34 and the applicable API standards rather than by catalog assertion. Instead of a fixed part-number chart, request your part-number cross-reference and our engineering team will return the equivalent for your existing manifold. Swagelok®, Parker®, Anderson Greenwood® and Hoke® are trademarks of their respective owners; Crestflo is not affiliated with or endorsed by them, and parts are interchange/equivalent, not "compatible" or "intermix."

3-Valve Manifold Applications & Industries

Three-valve manifolds serve differential-pressure flow, level and pressure measurement across oil and gas, upstream, midstream and refining, petrochemical and chemical plants, offshore and subsea facilities, power generation and nuclear, and LNG and cryogenic service, wherever a DP cell must be isolated, equalized and zeroed with full material traceability.

Why Buy Crestflo 3-Valve Manifolds

Crestflo is the instrumentation division of a four-decade-old, Government-of-India-recognized export house with a proven Middle-East delivery record, established heritage behind a focused new manufacturing brand. For US buyers that translates into a clear offer:

• Drop-in dimensional interchange for Swagelok®, Parker® and Anderson Greenwood® manifolds, request your cross-reference rather than re-engineering the hook-up.
• Ready stock for standard items · made-to-order for specials · 6–8 week delivery, measured against the 20-week-plus lead times typical of the majors.
• Full alloy breadth, 316 through Duplex, 6Mo, Inconel, Monel and Hastelloy, with 100% seat and shell leak testing on every manifold.
• Small MOQ and private-label programs for OEMs and distributors, with kitting to print.
• ISO 9001 / 14001 / 45001 and PED certified, MTC 3.1 and heat-number traceability on every unit.
• Indian origin; US or European melt available on request, with full material traceability for TAA/DFARS-driven projects.

We Engineer Confidence, request a quote, request a sample, or become a distributor. US sales: sales@crestflousa.com · +1 346 594 9005 · Houston, TX.
