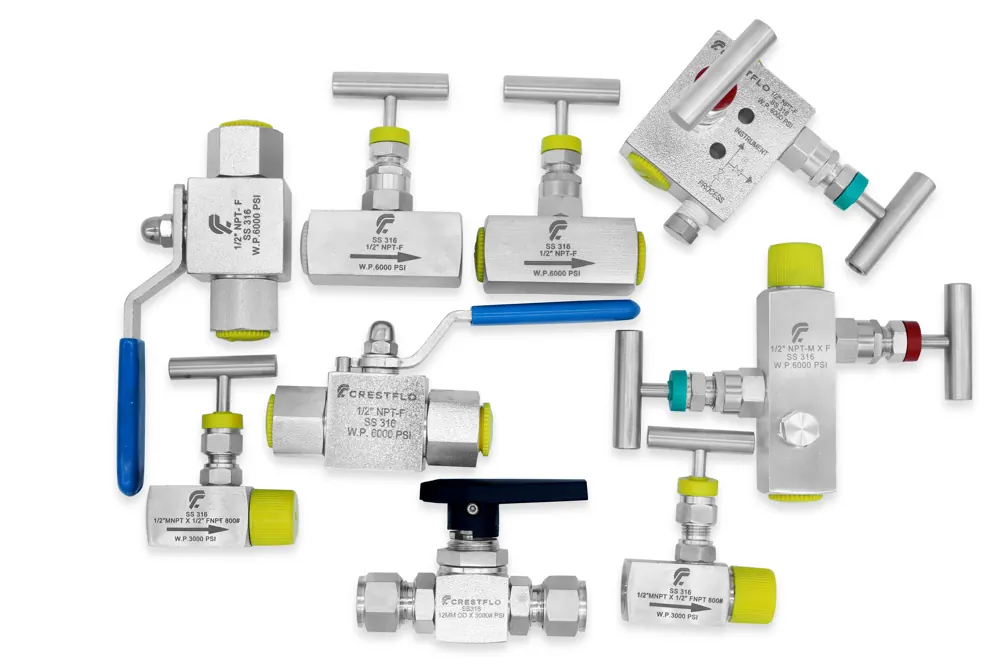

Instrumentation Needle Valves

An instrumentation needle valve is built for fine throttling. It's a threaded or tube-end flow-control valve whose tapered stem, the needle, seats into a matching conical seat. The result: precise, repeatable regulation and positive isolation of gas or liquid, suited to instrument, sampling and gauge-isolation service.

Crestflo manufactures these valves from 1/16" to 1", in 316/316L stainless and a full range of exotic alloys. Ends come threaded or as tube fittings. Every part is marked with a heat/lot number, and EN 10204 MTC 3.1 certification is standard, not an option. Standard items ship from ready stock. Everything else is made to order, with delivery in 6-8 weeks.

On this page, "needle valve" refers specifically to an instrumentation needle valve used for pressure work, sampling, calibration and gauge isolation. It doesn't mean a carburetor or float needle valve, and it isn't a plumbing shut-off either.

This valve carries several other names in the field: instrument needle valve, precision throttling or metering-pattern valve, bar-stock or integral-bonnet needle valve, hard-seat or regulating-stem needle valve. In gauge-isolation duty, it's called a gauge valve or gauge-root valve. When placing an order, specifiers typically spell out the pattern (angle/right-angle or straight/in-line), the bonnet (integral-bonnet or union-bonnet), the mounting (panel-mount or bulkhead), and the pressure class (standard or high-pressure).

What Is a Needle Valve & How Does a Needle Valve Work?

A needle valve does its work by driving a slender, taper-ground stem into a close-fitting conical seat. Turn the handle, and the fine-pitch thread on the stem advances it; the annular gap between needle and seat closes gradually rather than all at once. A small movement of the handle, then, translates into a small, nearly linear shift in flow. That's the geometry behind the valve's defining behavior: a low flow coefficient (Cv), fine resolution, and steady throttling even at the bottom of its range, right where a quarter-turn valve would already be acting like an on/off switch.

The tapered stem also seats metal-to-metal at full close. That's what lets the same valve that meters flow also shut it off completely, making it the workhorse for isolating and bleeding pressure down to a gauge, transmitter or analyzer line. Ball valves, by contrast, are built mainly for quarter-turn on/off duty. A needle valve gives something up in return: flow capacity, traded for control precision. The needle valve vs ball valve guide breaks that distinction down in more detail.

Needle Valve Types: Angle, Straight, Multi-Port & Panel-Mount

Instrumentation needle valves come configured by flow path and by mounting style. Which pattern you pick depends on how the valve actually sits, whether it's inline on the tubing run or mounted on the panel.

Straight and angle bodies handle most pressure, sampling and gauge-isolation duties. Multi-port and panel-mount patterns get specified when board layout or a block-and-bleed function drives the design.

Bonnet & Body Construction: Integral-Bonnet, Union-Bonnet & Bar-Stock

Crestflo machines its needle valves from bar stock on in-house CNC, VMC and EDM equipment. That gives a dense, defect-controlled body, with full heat-number traceability built in. Two bonnet constructions are on offer. In the integral-bonnet design, the bonnet's machined as one piece with the body, for the best possible stem alignment and pressure integrity. The union-bonnet design takes a different approach: a threaded union nut retains the bonnet, so it can be serviced in the field and the packing adjusted.

A non-rotating regulating stem tip is available, so it meters against the seat without spinning. That protects the seat finish and keeps repeatability high over many cycles. Forged-body options exist too, built for higher-pressure or larger-envelope needs. Every configuration can be tailored to what the job requires.

Needle Valve Seat, Stem & Packing: Hard-Seat, Regulating-Tip, PTFE & Graphite

The standard seat is integral: a hard metal seat built for durable, metal-to-metal shut-off. Where fine, non-galling control at low flow matters most, a regulating soft-tip or non-rotating-tip stem is available instead. Stems use a rolled or precision-ground fine thread, and they're available with a back-seating shoulder as well.

Packing selection sets the temperature envelope of the valve. The figures below are the commonly published service limits for each seal material. Crestflo supplies the packing best matched to your service, and it can be customized to requirement.

Needle Valve Sizes (1/16″–1″) & End Connections: NPT, BSP, Tube

Needle valves come in sizes from 1/16" to 1", with both imperial fractional and metric ends available. Connections are threaded, either NPT to ASME B1.20.1 or BSPP/BSPT in parallel and tapered forms. Or they're tube-fitting and compression ends instead, built for female-to-female, male-to-female, or male-to-male port arrangements. Thread and OD dimensions follow whichever standard applies, and they're customizable to whatever the job requires.

Tube-end valves take hardened or non-hardened ferrules, whichever the job calls for. Swapping in a replacement on an existing setup? Request Crestflo's Swagelok®, Parker® or Hy-Lok® cross-reference and just specify size, ends and material.

High-Pressure Needle Valve Ratings & Temperature Limits

Instrumentation needle valves throttle flow, so they run at low flow coefficients, typically well under Cv 1.0. Orifice diameter and stem taper set the exact Cv. Standard bar-stock instrumentation needle valves commonly carry a cold working pressure rating up to 6,000 psi (414 bar). High-pressure designs go further, up to 10,000 psi (689 bar). That's the usual range across the industry. Pressure-temperature ratings follow the applicable valve design standard, and they can be customized to requirement.

Crestflo valves are rated for maximum service temperature based on the seat and packing seal, not the body alloy, check the packing table above for those limits. They meet ASME B16.34, along with the relevant API testing standards (API 598 / API 602), covering pressure-temperature basis as well as shell and seat testing. Need the certified CWP and orifice confirmed for a particular size, material, or pattern? Submit an RFQ with your service conditions.

Needle Valve Materials: 316 Stainless, Monel, Hastelloy C-276 & Duplex

Bodies and stems come machined from bar stock to ASTM A479/A276, in stainless, duplex, super-austenitic and nickel alloys. No brass, ever. Every grade listed below links through to its own material page. Keep in mind, though: this valve ships in instrumentation form only, not as bar, sheet or mill product.

Finishes range from a standard material finish to electropolish, passivation, silver anti-galling plating and oxygen-clean prep, and each can be tailored to what's needed. Browse the full range of needle valve materials: 316, Duplex, Monel, Hastelloy here.

Standards, Certifications & Traceability

Crestflo holds certification to ISO 9001, ISO 14001, ISO 45001 and PED. Its needle valves meet the standard approvals used across instrumentation valves. ASME B16.34 sets the design and pressure-temperature basis. ASME B1.20.1 governs the NPT threads. Bar stock is sourced to ASTM A479 and A276. For sour service, material options are supplied to NACE MR0175 and ISO 15156.

Every valve carries a heat/lot number marked on the part and ships standard with an EN 10204 MTC 3.1 certificate; MTC 3.2 with third-party endorsement is available on request. Crestflo holds these certificates in its quality system, and content pages state conformance rather than listing certificate numbers.

Testing & Quality Assurance

Every valve goes through hydraulic proof, burst and impulse testing, pneumatic testing, and seat and shell leak testing, with positive material identification (PMI) confirming the alloy. Non-destructive testing happens in-house; destructive testing gets outsourced to labs accredited to ISO/IEC 17025, and pressure testing follows BS EN 12266-1. Third-party inspection is available on request, too. That backs the drop-in interchange claim: the valve's qualified by test, not by catalog assertion.

Needle Valve Applications & Industries

Instrumentation needle valves handle gauge and pressure isolation, sampling take-off, calibration, analyzer feed and hydraulic control. You'll find them across oil and gas, from upstream through midstream and into refining. Petrochemical and chemical plants use them too, along with power generation, offshore and subsea operations, and instrument-air and steam-tracing systems. Wherever a small-bore line calls for fine control or positive isolation, with full material traceability behind it, these valves do the work.

Related Instrumentation Valves & Needle Valve vs Ball Valve

A needle valve belongs to a family of small-bore instrumentation valves. When the job calls for on/off control rather than throttling, an instrumentation ball valve does the job better; the trade-off is laid out in needle valve vs ball valve. Need dedicated gauge isolation? Look at the gauge-root valve. For fine micro-metering with vernier resolution, there's the metering valve. And for combined block-and-bleed duty, Crestflo offers the double block-and-bleed valve, the bleed valve, and 2/3/5-way manifolds. The full instrumentation valves range covers all of these.

Why Buy Crestflo Needle Valves

Crestflo sits within the instrumentation arm of an export house that's been in business for four decades and carries formal recognition from the Government of India. It has a proven track record delivering into the Middle East. That heritage now stands behind a newer, focused manufacturing brand. For US buyers, that translates into one clear offer:

• Drop-in dimensional interchange for Swagelok®, Parker®, Hoke® and Hy-Lok® needle valves. No need to re-engineer the panel, just request your part-number cross-reference.
• Ready stock for standard items, made-to-order for specials, 6-8 week delivery. Compare that to the 20-week-plus lead times you'll typically wait on from the majors.
• Full alloy breadth, spanning 316 through Monel, Hastelloy, Duplex and Titanium. All of it machined in-house on CNC, VMC and EDM equipment.
• Small MOQ and private-label programs for OEMs and distributors, with kitting to print.
• ISO 9001 / 14001 / 45001 and PED certified, MTC 3.1 and heat-number traceability on every valve.
• Origin is India. US or European melt is available on request, complete with full material traceability for TAA- and DFARS-driven projects.

We Engineer Confidence. Want to move forward? Request a quote, request a sample, or become a distributor with Crestflo. For US sales, reach out to sales@crestflousa.com or call +1 346 594 9005. We're based in Houston, TX.

Needle Valve FAQs
