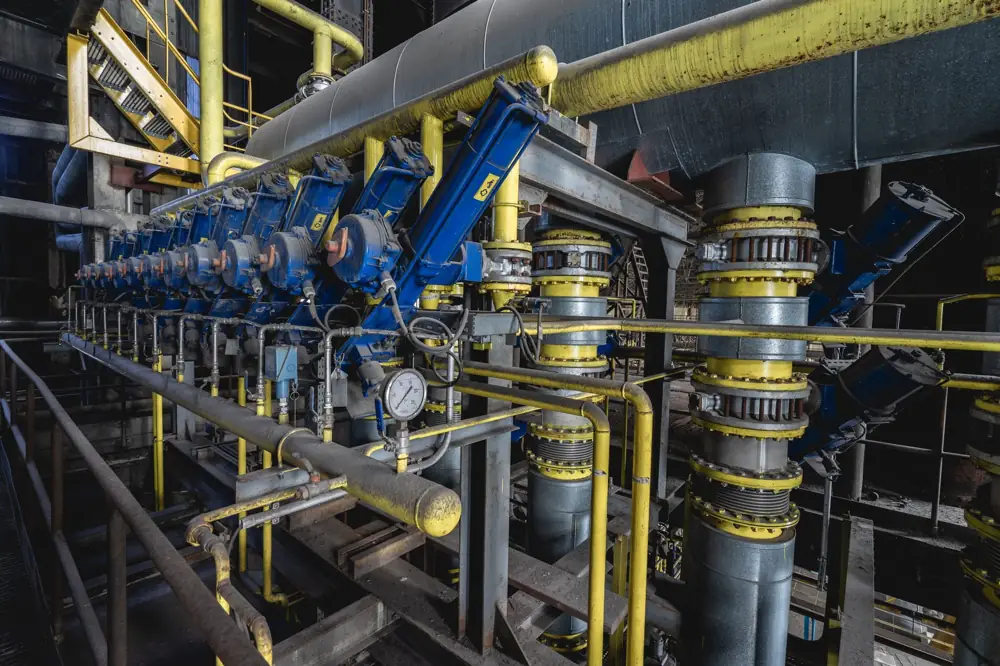

6000 PSI Instrumentation Fittings & Valves

6000 PSI instrumentation fittings and valves sit at the high end of small-bore fluid-system hardware, rated for a 6000 psi (roughly 414 bar / 41.4 MPa) cold working pressure. That's the maximum continuous pressure the part can hold at room temperature, nothing more. Crestflo builds this whole class: instrumentation valves, double-ferrule tube and compression fittings, manifolds, and the accessories that go with them, all in 316/316L stainless or high-nickel corrosion-resistant alloys. Compression fittings are performance-qualified to ASTM F1387, and valves are engineered to ASME B16.34. Don't confuse these with pipeline, plumbing, or hydraulic-hose products. They're instrumentation-grade, small-bore valves and tube fittings rated to a 6000 psi cold working pressure, and that number is a component CWP, not a hose-burst figure.

Reviewed by the Crestflo Engineering Team

6000 PSI Also Specified As: 6,000 PSI, 6000 PSIG, 6K PSI, 414 Bar & 41.4 MPa

Engineers and buyers write this pressure class in a number of ways. Sometimes it shows up as 6,000 psi (comma form), comma and all. Other times you'll see 6000 psig, or the fuller phrasing "rated to 6000 psi," "6000 psi CWP," or the shorthand 6K psi. Certain catalogs capitalize it too, printing 6,000 PSI or 6000 PSI. Metric documentation gives the same class as roughly 414 bar, 41.4 MPa, or 421.8 kgf/cm². On drawings and RFQs the figure gets attached directly to a product noun: 6000 psi needle valve, 6000 psi ball valve, 6000 psi check valve or NRV, 6000 psi relief valve, 6000 psi tube fittings, 6000 psi compression fittings, and 6000 psi snubber. Every one of these labels points to the same high-pressure instrumentation working-pressure band covered on this page.

6000 PSI Cold Working Pressure Explained: CWP Basis & Temperature Derating

Cold working pressure (CWP) marks the maximum continuous pressure a component can hold at ambient temperature (about 100 °F / 38 °C). A 6000 psi CWP rating isn't fixed across all service conditions. It derates as temperature climbs, tracking the material's allowable-stress curve, and the maximum service temperature of any valve gets capped further still by the seat, packing, and seal material. PTFE, PEEK, PCTFE, and metal seats each define their own temperature window. Ratings are published per the applicable material and design standard, including PED, and can be tailored to your requirement. Confirm the certified 6000 PSI rating and temperature limit for your exact size, alloy, and seal on your RFQ. For the method behind these numbers, see the pressure, temperature derating guide; for the broader lineup, see high-pressure instrumentation fittings & valves. Crestflo can confirm exact figures on request.

6000 PSI Instrumentation Valves: Needle, Ball, Check, Bleed & Gauge-Root

Crestflo instrumentation valves follow the ASME B16.34 design basis, with API 598/602 test and qualification methods applied where they fit the valve type. Sizes run from 1/16" to 1", with threaded or tube-fitting ends, plus a choice of handles, seats, and packing. A high-pressure needle valve or high-pressure ball valve instrumentation build lands here, at the 6000 psi class. It's part of the wider high-pressure instrumentation range. Valve families available for a 6000 PSI cold working pressure class include:

• Needle valves: available in angle, straight, and multi-port designs, built for throttling and isolation work.
• Ball valves, CWP-rated ball valves, 3-way ball valves, and trunnion ball valves cover the full range of shutoff needs.
• Check valves and non-return valves (NRV) come with adjustable cracking pressure.
• Relief valves: the 6000 psi number here is the body/CWP rating, not the set point. That's fixed by the spring range you specify, so confirm the set point separately from the body rating.
• Bleed valves, gauge and root valves, and metering valves round out the list.
• Valve manifolds: 2, 3, and 5-valve versions, rated by Crestflo up to 10,000 psi, so the 6000 psi class sits comfortably within range. Each unit passes a 100% seat and shell leak test.

Note the boundary: double block & bleed (DBB) valves are rated up to 3,000 psi and belong to the 3000 psi tier, not this one. Sour-service builds are available to NACE MR0175 / ISO 15156 in the appropriate alloy, specify sour service on your RFQ. Exact certified CWP is confirmed per size, material, and seal.

6000 PSI Tube & Compression Fittings: Double-Ferrule, NPT & 37° Flare

Crestflo tube and compression fittings come in a two-ferrule design, available in single- and double-ferrule configurations, built in stainless and high-nickel alloy, with end connections up to 2" (50 mm) OD in both imperial and metric sizing. The compression-fitting line carries performance qualification to ASTM F1387, the interchange proof most competitors bury in a PDF and hope nobody asks about. Working pressure on a fitting depends on size and wall thickness, so the 6000 psi coverage for any given assembly gets set by the tube OD and wall you pair with it, per the applicable tube-pressure standard; figures follow that standard and can be adjusted to what the job requires. Need NPT-ended "pipe fitting" builds? Check NPT tube fittings. For 37° flare (SAE/JIC) connections, which Crestflo rates up to 15,000 psi, see JIC 37° flare fittings. Those wanting 6000 PSI hydraulic fittings will find the same class supplied in DIN 2353 bite-type and 37° JIC hydraulic forms on the JIC 37° flare line. This is instrumentation-grade tube-fitting hardware, not hydraulic hose. The class covers high-pressure compression fittings and high-pressure tube fittings alike, and hardened or non-hardened ferrules ship depending on what's needed.

6000 PSI Accessories: Snubbers & Gauge Savers

Pressure snubbers come rated at 6,000 psi, built to dampen pulsation and spikes before they ever reach gauges and transmitters. It's the exact-match component for this pressure class. For over-range protection on 6000 psi instrument loops, pair snubbers with gauge savers.

6000 PSI Product Range at a Glance

Values follow the applicable standard, and we'll adjust them to your requirement. Certified per-model ratings get confirmed on your RFQ.

Materials for 6000 PSI Service: 316/316L Stainless, Duplex, Inconel, Monel & Hastelloy

It's the alloy that defines the corrosion envelope, no matter the pressure class. For general service, 316/316L stainless is the default choice. When chlorides or seawater are in the picture, 254 SMO, AL-6XN, and Super Duplex 2507 take over. And for sour service, high temperatures, or media that's just plain aggressive, Inconel 625, Monel 400, and Hastelloy C-276 handle it.

Compositions and mechanicals follow the applicable ASTM/UNS standard. Don't forget that a 6000 psi CWP is only an ambient rating; it derates as temperature rises and shifts with the seal you choose.

Pressure Unit Conversion: 6000 PSI in Bar, MPa & kgf/cm²

Standards, Testing & Traceability for 6000 PSI Components

Crestflo carries the standard approvals that apply to each product line. Compression fittings meet ASTM F1387 performance qualification; valves meet ASME B16.34; NPT threads follow ASME B1.20.1; 37° flare connections meet ISO 8434-2. Sour service parts are qualified to NACE MR0175 / ISO 15156. Materials come from stock certified to ASTM A269/A276/A479, whichever applies. Testing covers a lot of ground: hydraulic proof, burst, and impulse; pneumatic; flexure fatigue; vibration; thermal cycling; pull-out; and vacuum. PMI is standard on every part, and manifolds also get a 100% seat and shell leak test. Non-destructive testing happens in-house, while destructive testing goes out to ISO/IEC 17025-accredited labs. Third-party inspection is available if a customer asks for it. Every part carries its heat/lot number, so full traceability isn't a problem. An EN 10204 3.1 MTC ships standard with each order; a 3.2 certificate is available on request. Crestflo holds ISO 9001, 14001, and 45001 certification, plus PED.

Request a 6000 PSI Quote or Cross-Reference

Tell us your 6000 psi requirement: product family, size, alloy, end connection, and seal. Our engineering team will confirm the certified rating and the price. Standard items ship from stock already on hand, while specials get built to order, with delivery typically running six to eight weeks. We offer small minimum order quantities, along with private-label programs. Replacing a Swagelok, Parker, Hy-Lok, or other branded part? Send us the part number for cross-reference, and we'll send back the Crestflo equivalent rated for 6000 PSI. Datasheets and CAD files go out to customers on request.

• Request a quote, end users, EPC, and panel fabricators.
• Request a sample, validate fit and finish.
• Contact the engineering team, send a print or ask for the cross-reference.

Sales contact: sales@crestflousa.com · +1 346 594 9005 · Houston, TX.

Why Buy 6000 PSI Instrumentation Fittings & Valves from Crestflo

Crestflo is the instrumentation arm of an export house that's been in business for four decades and carries Government-of-India recognition, with a long track record of deliveries across the Middle East. That engineering depth sits behind a brand built specifically to serve US customers. Compression fittings are dimensional drop-in interchanges for the major brands. Not a marketing claim: it rests on ASTM F1387 performance qualification. Lead times run 6-8 weeks, well under the 20-plus weeks typical of the majors, and parts stay cost-competitive even after US duties. Every fitting and valve comes in both imperial and metric, with heat-number traceability and an MTC on every part. Standard product is of Indian origin. US and European melt is available on request, with full material traceability, for cases where domestic-melt qualification is required. We Engineer Confidence.

Adjacent High-Pressure Tiers: 3000, 10000, 15000, 20000 & 60000 PSI

Crestflo doesn't stop at 6000 psi. If that's not your class, step up the ladder: 3000 psi, 10000 psi, 15000 psi, 20000 psi, and 60000 psi, plus cone-and-thread fittings for the highest pressures. Whether the job calls for 6000 PSI or the full 60000 PSI, there's a fitting built for it.
