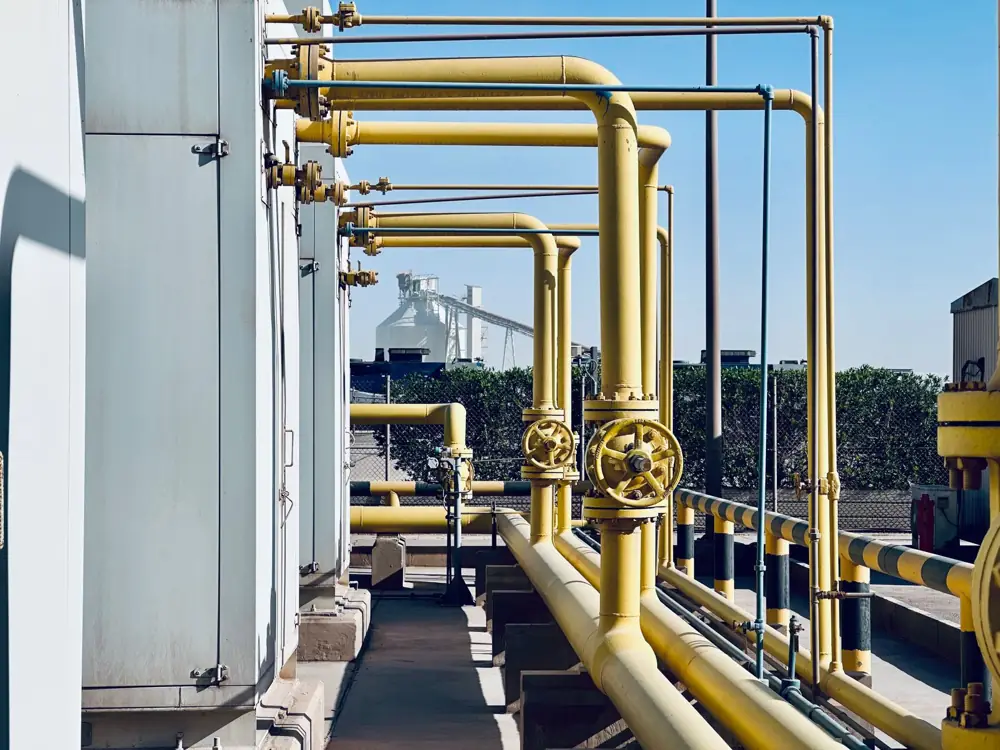

Instrumentation Fittings & Valves for Oil & Gas Midstream

Midstream oil and gas instrumentation covers the small-bore tube fittings, instrument valves, valve manifolds and tubing that link gauges, pressure and differential-pressure transmitters, and analyzers to gathering, compression, processing, pipeline-metering and storage assets. They're the leak-tight fluid-system parts carrying impulse and hook-up connections on skids, panels and field instruments. This is the segment that moves hydrocarbons from the wellhead to the refinery.

Crestflo supplies these instrumentation-grade components for gathering, compression, processing, pipeline metering and storage. Plumbing, exhaust and electrical parts aren't part of the lineup. The range runs from 316/316L up through the high-nickel and corrosion-resistant alloys that sour, wet and chloride-bearing midstream service calls for, and each one's built as a drop-in replacement for your existing spec.

Reviewed by the Crestflo Engineering Team

What Instrumentation in Oil & Gas Midstream Covers

Midstream sits between upstream production and downstream refining. It takes in gas gathering, natural gas processing and treating, compression, pipeline transportation, metering and custody transfer, and storage and terminals. Every one of these settings calls for the same family of instrument hook-up components, just in an alloy and sour-service standard matched to the service conditions at hand.

For production and Permian wellsite instrumentation see oil & gas upstream; for refinery-side hook-ups see downstream refining; the full segment map lives on the oil & gas hub. Cryogenic liquefaction and LNG export service (down to -196 °C) is handled separately on our LNG & cryogenic page.

Midstream by Its Other Names: Gathering, Processing, Transmission & Terminals

Buyers and specs don't all use the same words for this work. Some call it midstream oil and gas, others the midstream sector, still others the midstream segment, but the instrumentation scope stays the same. It covers gas gathering and gathering systems, natural gas gathering, gas treating and sweetening, amine treating, and glycol dehydration. Sulfur recovery (SRU) falls under it too, along with NGL fractionation, gas compression and compressor stations, and pipeline transmission and transportation. Pump stations, metering skids and metering stations, custody transfer and LACT units all belong here as well. So do pig launchers and receivers, pigging operations, and storage terminals, tank farms and bulk terminals.

On this page, "ball valve" and "needle valve" refer to instrumentation valves: small-bore units, mounted on a panel or skid. A "3-way ball valve" means the diverting or instrument-selector variant. "Manifold" means a 2/3/5-valve DP-transmitter manifold. A "check valve" works equally well as an NRV, or non-return valve. "Compression fitting" means an instrumentation tube fitting, and "ferrule" means a fluid-system compression ferrule.

Midstream Applications and the Instrumentation Components They Need

The table below lines up each midstream context with the instrument hook-up it typically calls for and the Crestflo components that handle it. Values reflect standard midstream hook-up practice. Component forms, though, can be customized to whatever the requirement demands.

Midstream Service Conditions: Sour Gas (H2S), CO2, Chlorides & Coastal Exposure

Pressure isn't what dictates alloy choice in midstream work. Corrosion is. The real drivers are H2S (sour service), CO2 (sweet corrosion in wet gas), chlorides carried in produced water, erosion from wet gas, and atmospheric or coastal exposure along the Gulf Coast. When H2S is in the picture, wetted metallic components have to meet NACE MR0175 / ISO 15156, or NACE MR0103 if the service sits closer to refinery operations. Fugitive-emissions programs bring another layer: ISO 15848 low-leakage requirements on valves.

Deeper sour-service logic sits in the sour-service selection guide. For broader condition-to-alloy mapping, see material selection by service. Values follow the applicable standard and can be tailored to your requirement.

Alloy Selection for Midstream: 316L, 6Mo, Duplex, 825 & 625

Start at 316/316L for mild, sweet or dry service. Where chlorides threaten pitting, step up to 254 SMO / 6Mo or AL-6XN. If you need strength alongside resistance to chloride cracking, Duplex 2205 or Super Duplex 2507 is the right call. For the toughest sour and high-chloride duty, turn to Alloy 825 (also specified as Incoloy 825) or Inconel 625.

Special cases round out the range: Monel 400 for HF and reducing service, 904L and Alloy 20 for sulfuric and mixed-acid streams. Every grade is stocked only as instrumentation-grade fittings, valves and tubing, each with heat-number traceability and mill test certificates.

Midstream Component Quick-Spec: Sizes, Pressure & End Connections

The ratings shown below reflect the published capabilities of Crestflo's product lines. Final ratings follow the applicable standard and can be adjusted to suit specific requirements.

Standards & Compliance for Midstream Instrumentation

Crestflo instrumentation is manufactured to the standard approvals applicable to each product type. Compression tube fittings are tested to ASTM F1387 and offered NACE compliant; instrument valves and manifolds are designed to ASME B16.34, with pipeline and metering valve testing referencing API 6D and API 598 as applicable, and fire-safe and fugitive-emissions duty addressed via API 607/6FA and ISO 15848. Tubing follows ASTM A269 / A213; sour service follows NACE MR0175 / ISO 15156; and process-piping context follows ASME B31.3.

Certificate copies sit in our quality library. Datasheets and CAD models aren't posted for public download; we send them to customers who ask.

Why Crestflo for Midstream Instrumentation

Crestflo is the instrumentation division of an export house that's over four decades old, recognized by the Government of India, with a long track record delivering into the Middle East. That history gives a focused instrumentation brand established supply-chain discipline behind it. We stay narrow on purpose as a midstream equipment supplier: our scope in midstream oil and gas equipment is instrumentation fittings, valves and tubing, not rotating or fixed plant. For midstream buyers, that comes down to five things:

• Drop-in interchange, proven. Compression fittings offer dimensional interchange with Swagelok, Parker, Hy-Lok, Hoke and Fitok, backed by ASTM F1387 performance qualification. Request your Swagelok alternative or Hy-Lok cross-reference, or start at the master interchange.
• The full CRA range for sour service. 316L through 6Mo, duplex, super duplex, 825 and 625. All NACE MR0175 compliant. One supplier covers sweet, sour and chloride duty.
• Honest, planned lead time. Standard items ship from ready stock; specials are made to order. Expect 6-8 weeks, against the 20-plus weeks common with the majors. See lead time.
• Small MOQ and private label. Kitted skid and panel programs, private-label options, and full traceability with EN 10204 3.1/3.2 MTC.
• Traceable origin. Material is of Indian origin, though US and European melt is available on request, with full traceability intact. TAA and country-of-origin questions are covered on US-origin compliance.

We Engineer Confidence. Sizing a midstream package? Request a quote, request a sample, or talk to our team directly. Distributors shouldn't skip the distributor program.

Midstream Regions We Serve

Crestflo works with midstream operators, EPC contractors, skid and panel fabricators, distributors and OEMs throughout the major US producing and transport corridors. Everything's built to order and shipped straight to the project site. Our US sales contact is based in Houston, TX.
