Custom & Made-to-Print Manufacturing of Instrumentation Fittings, Valves & Components
Send us a print, a written spec, or a physical sample, and Crestflo builds the non-standard instrumentation part you can't find off the shelf: custom tube fittings, ferrules, compression fittings, valves, manifolds and flow-control components in stainless and high-nickel/CRA alloys. Every made-to-print part gets machined in-house. It's marked with a heat number, comes with a material test certificate, and ships in 6–8 weeks. We Engineer Confidence.
What "Custom" and "Made-to-Print" Mean Here
Custom manufacturing means turning your drawing, 3D model, spec or sample into a finished instrumentation component. It's a print-to-part, drawing-to-part service, not a catalog pick. Non-standard sizes, threads, materials and configurations that a standard range doesn't carry all fall under it, built to your dimensions and marked with your part number.
Scope note: these are instrumentation-grade custom fittings and valves in stainless and high-nickel alloys, not hydraulic hose ends, plumbing or copper compression fittings, or plastic pipe fittings. If you need an off-the-shelf size, start with our standard tube fittings and instrumentation valves; this page is for parts built to your print.
Also Known As
This capability also goes by made-to-print (or made to print) manufacturing, built-to-print work, print-to-part and drawing-to-part machining, made-to-order or made-to-spec (made-to-specification) fittings, custom fabrication in stainless steel, and contract manufacturing of instrumentation hardware. Engineers looking for the same service search under different terms too: custom instrumentation fittings, custom compression fittings, custom stainless steel fittings (or custom stainless fittings), a custom ferrule, a custom valve manufacturer or custom valve body, custom manifolds. Bespoke or non-standard special-order fittings come up often, as do custom-machined and precision-machined parts. Sometimes it's reverse-engineering a discontinued part from nothing more than a sample.
What We Make to Your Print
We build the full instrumentation range to a custom print, in imperial and metric.
- Custom tube & compression fittings, unions, connectors, elbows, tees, crosses, reducers, adapters and bulkhead styles in stainless and alloy.
- Custom ferrules, single and double ferrules, hardened or non-hardened depending on what the job calls for, plus nut-and-ferrule sets.
- Custom instrumentation valves & manifolds, ball, needle, check, packless (bellows/diaphragm), relief, bleed, metering and 2/3/5-way manifolds. Double-block-and-bleed is available too, built as a custom valve build.
- Custom high-pressure fittings, cone-and-thread and precision fittings built for elevated-pressure service, drawn from our high-pressure range.
- Custom face-seal & high-purity fittings, VCR/VCO face-seal parts and orbital-weld parts, made for UHP and semiconductor lines.
When You Need a Custom Part
A made-to-print part makes sense when nothing off-the-shelf fits your service.
- A non-standard size or thread, an odd OD, a metric-to-imperial hybrid, or a special or non-standard thread form.
- An exotic or CRA alloy not held in standard stock, Inconel, Hastelloy, Monel, duplex or titanium.
- A discontinued or hard-to-source part, we reproduce it from a sample or drawing. If you need to match an existing brand dimensionally, request your cross-reference.
- A combined or hybrid configuration, or a prototype, one-off or low-volume run. We can handle a low MOQ, small-batch job for qualification.
How Made-to-Print Works: Print → Part
- Send your input. Submit a drawing or print, a 3D CAD model, a written specification, or a physical sample for reverse-engineering. Let us know your preferred file format on the RFQ.
- Design & material review. We confirm geometry, tolerances and the right alloy for your service, backed by design and DFM support.

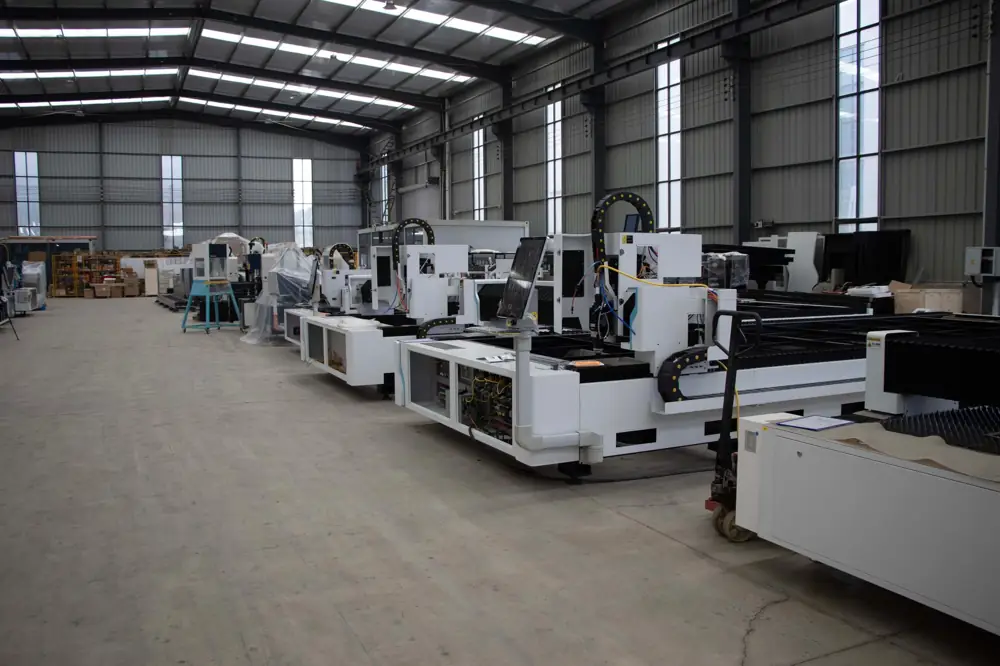

- Machining. Non-standard geometry gets produced in-house on CNC, VMC, EDM and milling equipment. Details are on our machining page.
- Finishing. Material finish, electropolish, passivation, silver anti-galling plating or oxygen/UHP cleaning, whatever the spec calls for. See finishing for the full list.
- Testing & traceability. Every part is tested and inspected, marked with a heat number, and shipped with a material test certificate.
- Delivery. Made-to-order specials ship in 6–8 weeks; see our lead-time basis.
Custom Manufacturing Capabilities Matrix
| Capability | Range / options | Notes |
|---|---|---|
| In-house processes | CNC turning, VMC (vertical machining), EDM, milling | Non-standard geometry made in-house, not brokered |
| Fitting size | Up to 2″ (50 mm) OD; imperial and metric | Values per applicable standard; customizable to requirement |
| Valve size | 1/16″ to 1″; threaded or tube-fitting ends | Metric or imperial |
| Pressure | Compression/flare up to 15,000 psi; cone-and-thread up to 30,000 psi; manifolds up to 10,000 psi; DBB up to 3,000 psi | Ratings per product type; customizable to requirement |
| Threads | NPT (ASME B1.20.1), metric, international and non-standard/custom | Thread dims per applicable standard |
| Ferrules | Single and double; hardened or non-hardened | To requirement |
| Finishes | Material finish, electropolish, passivation, silver anti-galling plating, oxygen/UHP cleaning | Targets customizable to requirement |
| Materials | Stainless through high-nickel and CRA alloys, plus titanium | See materials table below |
Standard vs. Made-to-Print: Which Route Fits
| Attribute | Standard catalog item | Made-to-print custom part |
|---|---|---|
| Availability | Ready stock for standard items | Made-to-order for specials |
| Size / thread | Cataloged sizes and threads | Non-standard size, thread or geometry |
| Material | Common stainless grades | Full stainless + exotic/CRA alloy breadth |
| Minimum order | Standard pack quantities | Small MOQ, including prototype and low-volume runs |
| Delivery | Ready stock for standard items · made-to-order · 6–8 week delivery | 6–8 week delivery |
| Interchange proof | ASTM F1387 (fittings) | ASTM F1387 (fittings); ASME B16.34 / API (valves) |
Custom Fittings & Valves in Stainless and Exotic Alloys
Custom parts get machined across the full instrumentation alloy range. Grades are covered on their own material pages; for a custom order, we supply only the finished fitting, valve, or component.
| Alloy family | Representative grades | Grade reference |
|---|---|---|
| Stainless | 304/304L, 316/316L, 904L | Materials hub |
| Duplex / super-austenitic | Duplex 2205, Super Duplex 2507, 254 SMO, AL-6XN, Alloy 20 | Super Duplex 2507 |
| Nickel alloys | Inconel 600/601/625/718/825, Incoloy 800/800H/825, Monel 400/K500, Hastelloy C-276/C-22/B-2/B-3/X, Nickel 200/201 | Inconel 625 · Hastelloy C-276 · Monel 400 |
| Titanium | Titanium Gr2 | Titanium Gr2 |
Stainless and high-nickel/CRA alloys lead the pack for US instrumentation service. Brass and carbon steel aren't headline custom materials; we name them only when an accessory is genuinely supplied in those grades. Custom stainless steel fittings, custom exotic-alloy fittings, custom Inconel fittings, custom Hastelloy fittings, custom Monel fittings, custom duplex and super-duplex fittings, custom titanium fittings: whatever the job calls for, we machine the part to your print in that grade.
What to Send Us for a Custom Quote
| Input | Accepted | What it enables |
|---|---|---|
| Engineering drawing / print | Yes | Dimensioned manufacture to your tolerances |
| 3D CAD model | Yes | Direct geometry for machining |
| Written specification | Yes | Build to a spec where no drawing exists |
| Physical sample | Yes | Reverse-engineering of a discontinued or unmarked part |
| Target alloy & quantity | Yes | Material selection and MOQ/lead-time quote |
Standards, Certifications & Proof on Custom Parts
Crestflo holds ISO 9001, ISO 14001, ISO 45001 and PED certification. When it comes to custom parts, the same qualification, testing and traceability apply as with standard production.
| Item | Applies to custom parts | Reference |
|---|---|---|
| Fitting interchange qualification | Compression tube fittings performance-qualified to ASTM F1387 | ASTM F1387 |
| Valve qualification basis | Valves qualify to ASME B16.34 / API (e.g. API 598, API 602) | ASME B16.34 |
| Sour-service | NACE MR0175 / ISO 15156 where specified | NACE MR0175 |
| Traceability | Heat/lot number on every part; EN 10204 MTC 3.1 standard, 3.2 on request | EN 10204 MTC |
| Material verification | Positive material identification (PMI) | Traceability |
| Testing regime | Hydraulic proof/burst/impulse, pneumatic, fatigue, vibration, thermal cycling, pull-out, vacuum; 100% seat & shell leak on manifolds | Testing & inspection |
| NDT & destructive | In-house NDT; destructive testing at ISO/IEC 17025-accredited labs; third-party inspection on request | Testing & inspection |
Datasheets and CAD files are available to customers on request. Oxygen-clean and UHP cleaning procedures are documented on our cleaning page.
Start Your Custom Build
Ready to send a print or a sample? Request a custom quote, and our engineering team will get back to you with material options, pricing and lead time. Need to match an existing part? Request your cross-reference. For volume programs, route them through private-label or kitting & VMI.
Why Crestflo for Custom Work
- 6–8 week delivery on made-to-order specials, against the 20+ weeks common from the major brands. Ready stock for standard items, made-to-order pieces at 6–8 weeks.
- In-house machining covers CNC, VMC, EDM and milling, so non-standard geometry gets produced under one roof instead of farmed out to a subcontractor.
- Full alloy breadth, stainless through Inconel, Hastelloy, Monel, duplex and titanium.
- Drop-in interchange, fittings are performance-qualified to ASTM F1387; valves meet ASME B16.34 / API.
- Traceability on every part, heat number, EN 10204 MTC 3.1/3.2, PMI and full test records.
- Small MOQ and private label, prototype, low-volume and OEM runs supported.
- Cost-competitive after US duties, see the tariff cost advantage.
Crestflo is the instrumentation division of an export house that's been operating for four decades and carries Government-of-India recognition, with a delivery record across the Middle East. Heritage manufacturing depth sits behind a focused instrumentation brand. The Crestflo Engineering Team reviews all technical content.
Custom Manufacturing FAQ
Can you make a fitting from my drawing?
Yes. Send a print, a 3D model, a written spec, or a physical sample, and we'll manufacture the part to your specification. In-house CNC, VMC, EDM and milling let us handle non-standard geometry directly.
Do you reverse-engineer from a sample?
Yes. When there's no drawing on file, we measure a physical sample and reproduce it from that, handy for discontinued or unmarked parts. Want it matched to a named brand's dimensions? Just request the cross-reference.
What sizes and threads can be custom-made?
Fittings run up to 2″ (50 mm) OD, and valves span 1/16″ to 1″, covering imperial and metric sizes with national, international, or non-standard custom threads. Values follow the applicable standard, but they can be customized to whatever the job requires.
Which materials can custom parts be made in?
Stainless 304/316/904L plus exotic/CRA alloys, Duplex and Super Duplex, 254 SMO, AL-6XN, Alloy 20, Inconel, Incoloy, Monel, Hastelloy, Nickel 200/201 and Titanium Gr2.
Are custom ferrules available, hardened or non-hardened?
Yes. We supply single and double ferrules hardened or non-hardened, whichever your requirement calls for.
What is the lead time on a custom order?
Roughly 6–8 weeks for made-to-order specials, well ahead of the 20-plus weeks typical of the major brands.
Is there a minimum order quantity?
Small MOQs are available, including prototype and low-volume runs. Just note your quantity on the RFQ and we'll get you an exact quote.
Do custom parts come with material certs and traceability?
Yes. Every part carries a marked heat/lot number, with EN 10204 MTC 3.1 supplied as standard and 3.2 available on request. Datasheets and CAD are provided to customers on request.
Can custom parts be qualified as drop-in replacements?
Custom fittings go through performance qualification under ASTM F1387, which sets the basis for dimensional interchange. Custom valves, meanwhile, qualify to ASME B16.34 along with the applicable API standards.
Where are custom parts made, and are they TAA-eligible?
Standard parts come from India; US or European melt is available on request, with full material traceability. TAA/DFARS requirements are handled on our origin and compliance page.
How do I start a custom order?
Send your print, spec, or sample through our quote request, and we'll get back to you with material options, pricing, and lead time.
